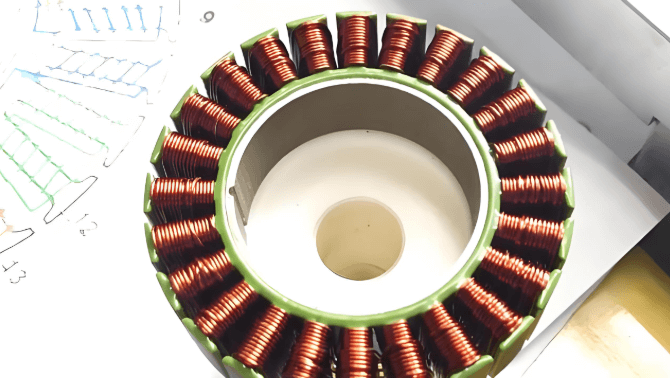

Motor winding machines are critical equipment used in manufacturing and repairing electric motors by wrapping conductive wire around a core to form a coil. These coils play an essential role in creating the magnetic field needed for the motor to function effectively. The performance of any motor heavily depends on how well the winding is done, making the choice of a reliable winding machine extremely important.
As the demand for high-performance and energy-efficient motors continues to grow, the features of winding machines have become more advanced. Choosing the right one ensures consistent production quality, reduces material waste, and increases the lifespan of the motor.
Top Features to Look
Before selecting a motor winding machine, it’s important to understand the features that directly impact performance, reliability, and ease of use. Not every machine will meet the needs of your production environment, so evaluating key features helps avoid costly mistakes.
From advanced automation to build quality and safety systems, each component contributes to the overall efficiency of the winding process. Below are the most essential features to consider to ensure that the machine you invest in meets your operational and quality expectations.
1. Precision Control
Precision control is one of the most crucial features in any motor winding machine. It ensures that the wire is laid exactly where it needs to be, maintaining uniform coil spacing and consistent resistance. This directly affects the motor’s efficiency, reducing issues like overheating and vibration.
Modern winding machines often come with digital controllers and feedback systems to enhance precision. These systems automatically adjust parameters in real-time, correcting any deviations immediately. This results in high-quality coils even in large production batches with minimal operator intervention.
2. Speed Adjustment
Speed adjustment capabilities give the user full control over the winding process. Different coil types and wire gauges require varying speeds to avoid breakage or slack. By adjusting speed, users can work with delicate wires and also switch to faster production for thicker wires.
Having variable speed settings also reduces wear and tear on the wire and machine components. It provides flexibility to match the pace of operation with material characteristics and production requirements. This adaptability ensures both efficiency and product safety.
3. Programmable Functions
Programmable functions allow operators to save winding patterns and reuse them whenever needed. These include settings for the number of turns, wire direction, layer spacing, and tension levels. With one-touch setup, production becomes faster and less prone to human error.
Machines with programmable logic controllers (PLC) or microcontroller-based systems bring automation to the next level. They help reduce operator fatigue while maintaining consistent performance across multiple motor types and batches. This feature is especially important for businesses with high-volume or customized motor orders.
4. Durable Build
A durable machine frame and components are essential for long-term industrial use. Machines built with high-quality metals, such as stainless steel and cast aluminum, are resistant to corrosion and mechanical stress. This reduces the risk of failure during operation and lowers replacement frequency.
Durable winding machines also offer greater stability during high-speed operations. Their solid construction helps maintain alignment and reduce vibrations, resulting in higher winding accuracy. Such machines can withstand years of use with minimal signs of wear and tear.
5. Wire Tension Control
Wire tension control is critical to avoid wire breakage or uneven winding during the coil-forming process. A consistent tension ensures the wire is neither too tight nor too loose, which affects the electrical characteristics of the motor coil. Manual or automatic tensioners keep the process smooth and efficient.
Advanced machines use electronic tension control systems that respond dynamically to speed and wire type. These systems minimize friction and prevent stress on the wire, improving product quality. Proper tension control also extends the life of both the wire and the machine.
6. Automatic Layering
Automatic layering ensures that each wire layer is placed evenly without overlapping or spacing gaps. This results in neat, compact coils that meet strict performance standards. The feature is particularly valuable when dealing with fine wires and multi-layer winding configurations.
Automation in layering improves speed and accuracy, eliminating the inconsistencies of manual placement. It allows the operator to focus on overseeing production rather than adjusting the wire path repeatedly. The end result is a high-quality coil that functions efficiently and reliably.
7. Error Detection System
An error detection system alerts operators to problems like wire breakage, misalignment, or machine faults. It plays a key role in preventing defective products and reducing material wastage. Real-time notifications allow quick corrective action, keeping the production line running smoothly.
More advanced systems can halt the machine automatically when a problem is detected. These features not only save time but also protect the machine and the material. In high-volume operations, early error detection significantly improves productivity and quality control.
8. Compatibility with Wires
A good winding machine must support various wire types including copper, aluminum, and coated wires. It should also accommodate different wire gauges without requiring significant adjustments or tooling changes. This makes it suitable for diverse applications across industries.
Machines with adjustable wire guides, spool holders, and tensioners increase flexibility. Such features make it easier to switch between jobs and reduce setup time. This compatibility ensures that one machine can be used for a broad range of motor winding needs.
9. Energy Efficiency
Energy-efficient winding machines help reduce operational costs and carbon footprint. They use motors and systems that consume less electricity while maintaining high performance. Lower power consumption leads to reduced utility bills, which is crucial for cost-conscious businesses.
Some machines include energy-saving modes that automatically shut down non-essential functions when not in use. Others are designed with high-efficiency motors and low-friction parts that minimize waste. Investing in an energy-efficient machine is both environmentally responsible and economically smart.
10. Low Maintenance Requirement
Machines with low maintenance requirements reduce downtime and keep production flowing smoothly. Components such as self-lubricating bearings and sealed motors reduce the need for regular servicing. Fewer maintenance tasks mean more time for actual production.
Choosing machines with easy-access panels and modular components can simplify repair and part replacement. This also reduces the cost of technician visits and spare parts. Long-term, these machines deliver a better return on investment by staying operational more consistently.
11. High Load Capacity
A high load capacity allows the machine to handle large coils or heavy wire spools without strain. This is especially beneficial for manufacturers producing large motors or handling thick wire. It also reduces the need to change spools frequently, saving time.
Machines built for heavy-duty performance usually have reinforced frames and more powerful winding motors. These features ensure stable and continuous operation even under demanding workloads. High load capacity translates into higher throughput and greater efficiency.
12. Safety Features
Safety should never be compromised in any production environment. Motor winding machines should include emergency stop buttons, wire break detection, and overload protection systems. These features safeguard both the operator and the machine during operation.
Compliance with industry safety standards also boosts workplace confidence and reduces liability. Some machines include covers or guards to protect against moving parts. By integrating these safety features, manufacturers can ensure safer and more efficient operations.
13. Noise Reduction
Machines that operate quietly create a more comfortable and productive workspace. Noise reduction is achieved through soundproof enclosures, vibration-damping frames, and smoother-running motors. This feature is particularly valuable in environments with multiple machines running at once.
Low-noise machines reduce worker fatigue and help maintain focus during long shifts. Over time, a quieter work environment contributes to better employee health and satisfaction. Investing in a low-noise machine can improve both productivity and employee well-being.
14. Custom Winding Options
Custom winding options allow operators to program complex or unique coil patterns based on application requirements. Whether it’s segmented, multi-layer, or bifilar winding, customization ensures optimal motor performance. This flexibility is a key for prototyping and special-purpose motors.
Advanced machines offer software interfaces where custom programs can be developed and stored. Operators can tweak settings like pitch, direction, and layer spacing to match customer specifications. Customization features empower businesses to serve niche markets and diverse applications.
Trust in Honest Automation
For those seeking high-quality, reliable, and feature-rich motor winding machines, Honest Automation stands out as a trusted name in the industry. With cutting-edge technology, durable components, and precision engineering, honest automation delivers machines tailored to meet various industrial needs.
Whether you’re scaling production or enhancing repair quality, partnering with a reliable manufacturer makes all the difference. Get in touch through the details below to discuss the best solution for your business:
Phone: +86 189 2373 2990
Email: sales@honest-hls.com
Website: https://www.honest-hls.com/
Concluding Statement
Motor winding machines are not one-size-fits-all; they must be selected based on specific performance and production needs. Features like precision control, speed adjustment, and programmable functions play a significant role in ensuring consistent and high-quality coil production. These features not only enhance efficiency but also reduce operational costs and improve the end product.
From energy efficiency to custom winding capabilities, the features highlighted in this article help identify the most important aspects when choosing a motor winding machine. Investing in a machine with these advanced features ensures your operations stay competitive, reliable, and future-ready. With the right winding machine, manufacturers can achieve optimal performance, reduced waste, and long-term profitability.
